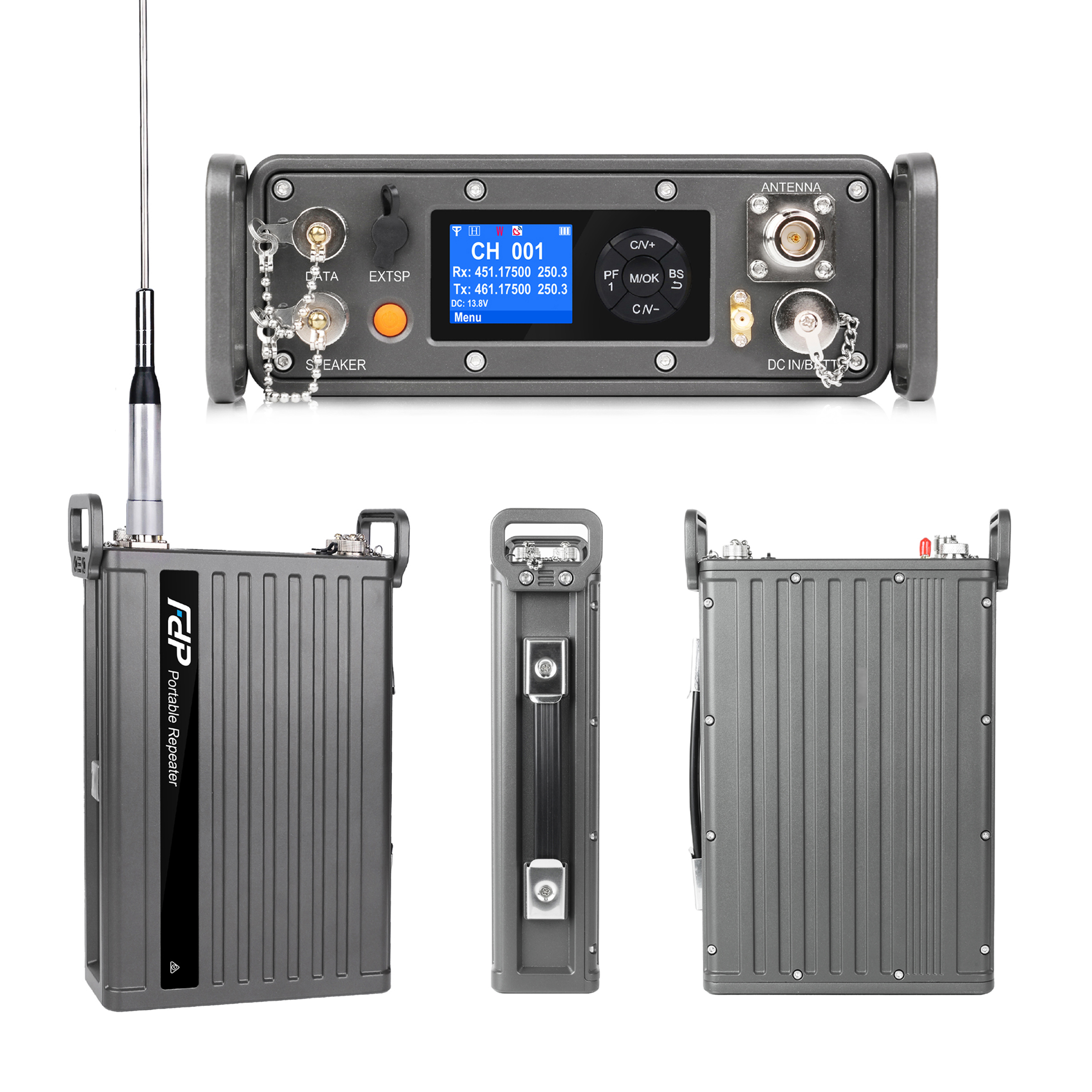

We have intentionally developed a dedicated Portable Analogue Repeater (PAR) based on the principle that, in critical environments, simplicity translates to reliability. While digital systems have their place, analogue remains the standard for consistency as it often maintains a clear signal in conditions where digital transmissions might fragment or drop out entirely. Furthermore, analogue architecture is inherently more resilient against desensitisation caused by high RF noise floors.
By focusing on a streamlined, high-performance solution, we eliminate the unnecessary costs associated with complex, multi-feature systems. Our approach ensures you receive superior local coverage and robust durability without paying a premium for features that do not serve your core operational needs.
Features:
– Frequency: 400 – 470MHz or 450 – 500MHz (standard)
– Power output: 15W*, 10W and 5W
– 16 Channels: 25kHz and 12.5kHz channel spacing
– Repeater Mode and Duplex Transceiver Base/Mobile mode.
– Built in 13Ah@14.4VDC Li-ion Battery Pack gives up to 9hrs at 10W 50% duty cycle
– External power supply
– Built-in Duplexer
– Speaker Microphone
– Front Mount Accessories and Antenna for Easy Access and Deployment.
– Operating voltage: 12-17VDC 14.4VDC Nominal
– Dimensions: 183mm (W) x 68mm (H) x 270mm (D)
– Weight with battery: ≤ 3.9kg
– IP67 Waterproof.
– AS/NZS Compliant LMRS approved
Easy and flexible deployment – This compact and self contained backpack style repeater allows multiple deployment use:
– Ideal for expanding range within factories, warehouses, retail hubs, hospitality venues, and parking lots etc.
– Base Repeater / Duplex Transceiver for local area coverage.
– On board ships communications (UHF Marine Channels)
– Temporary field deployment to enhance communication range for ground personnel.
– Emergency deployment scenarios.
* 15W requires a 9-10MHz duplex offset. Reduce power for narrower offsets. It is recommended for heavy duty cycles or high ambient temperatures to use an external fan for 15W use.
Duplexers come in two ranges 400-470MHz (by special order) and 450-520MHz (standard).
A dedicated directly attached tuned antenna is available as a separate purchase. Comes with straight and right angle adapters for different deployment orientations. The FDP PAR can be used with a remotely attached antenna.
